RBAC Configuration Guide

This guide explains how to configure Role-Based Access Control (RBAC) in Kite to efficiently manage user permissions and resource access.

Overview

Kite's RBAC system supports:

• Defining custom roles with specific permissions
• Assigning roles to users or OAuth groups
• Flexible access control at cluster, namespace, and resource levels
• Specifying allowed operations (verbs) for each role

Configuration

Users with the admin role can access the settings entry in the upper right corner of the page.

The system provides two default roles that cannot be edited or deleted:

• admin: Has full permissions to manage all resources
• viewer: Has permissions to view all resources and logs

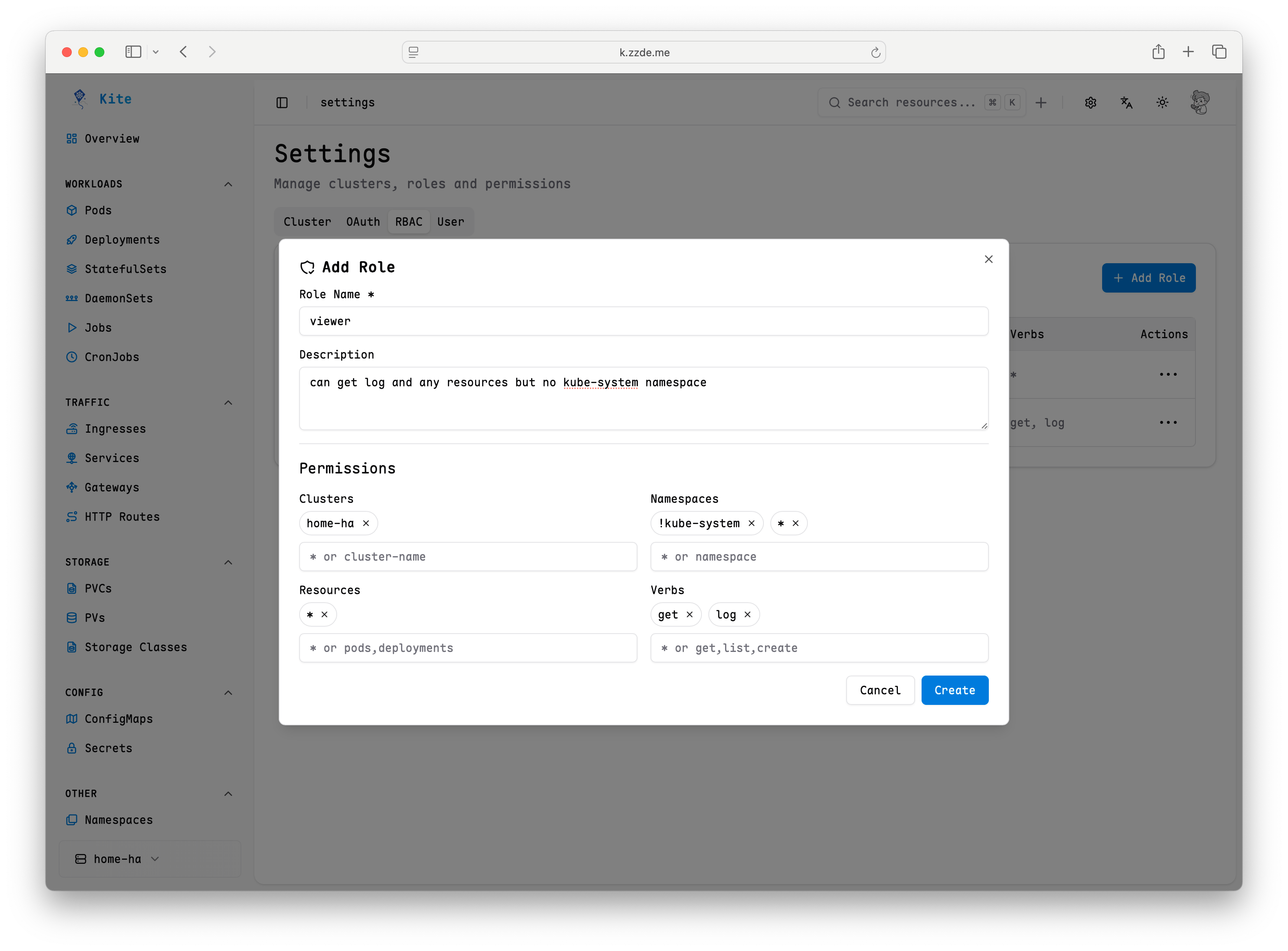

Each role can specify the following fields:

Field	Description	Example
name	Role identifier	admin, viewer
description	Brief description (optional)	Administrator role with full access
clusters	Applicable clusters	!prod, dev means can access dev but not prod
resources	Accessible resources	pods, deployments for specific resources
namespaces	Applicable namespaces	!kube-system, * means can access all namespaces except kube-system
verbs	Allowed operations	get for read-only operations

Supported Operation Verbs

• Common resources: get, create, update, delete
• Pod-specific: exec, log (for pod terminal and log access)
• Node-specific: exec (for node terminal access)
• Wildcard: * (all operations)

Mapping Roles to OAuth Groups

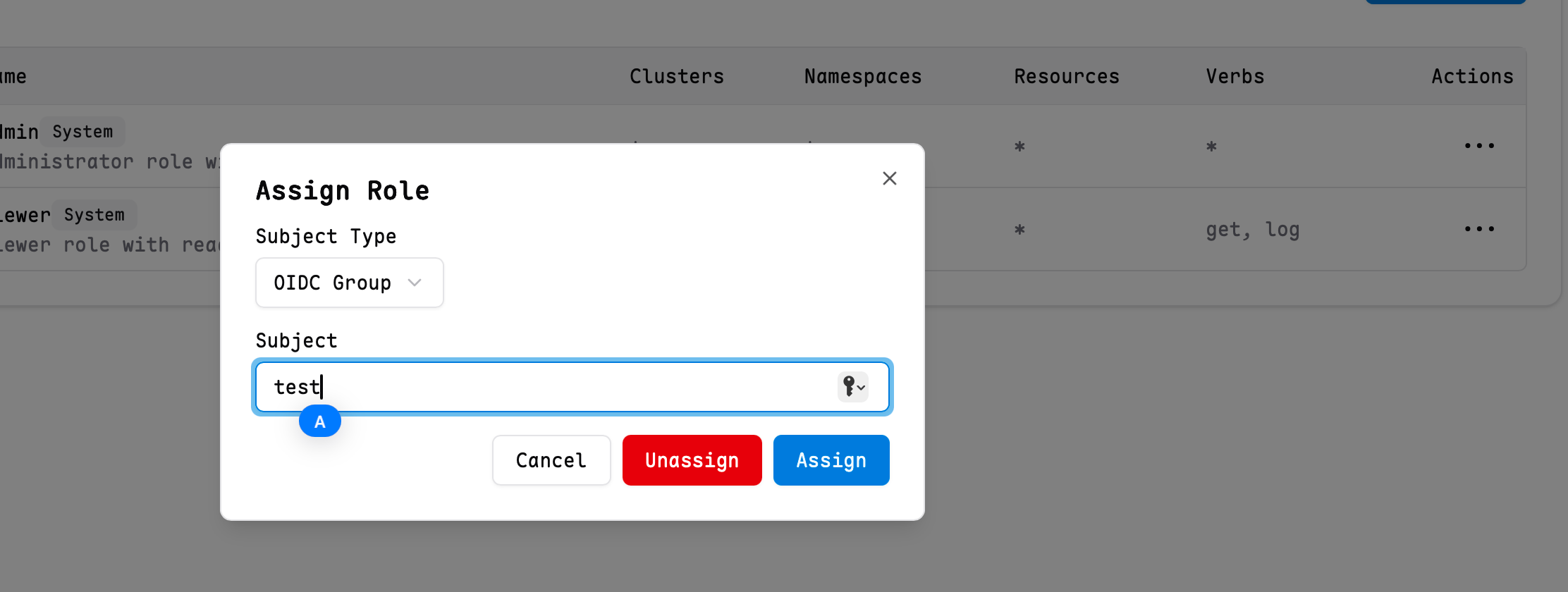

You can assign roles to specific OAuth groups, so that all users in the group automatically inherit the corresponding permissions.

Note: Some OAuth groups may not be able to return user group and permission information. It is recommended to use the DEX project as a relay. Please ensure that the OAuth scope includes groups or roles.

You can configure or cancel group mapping in Role Actions.

Mapping Roles to Users

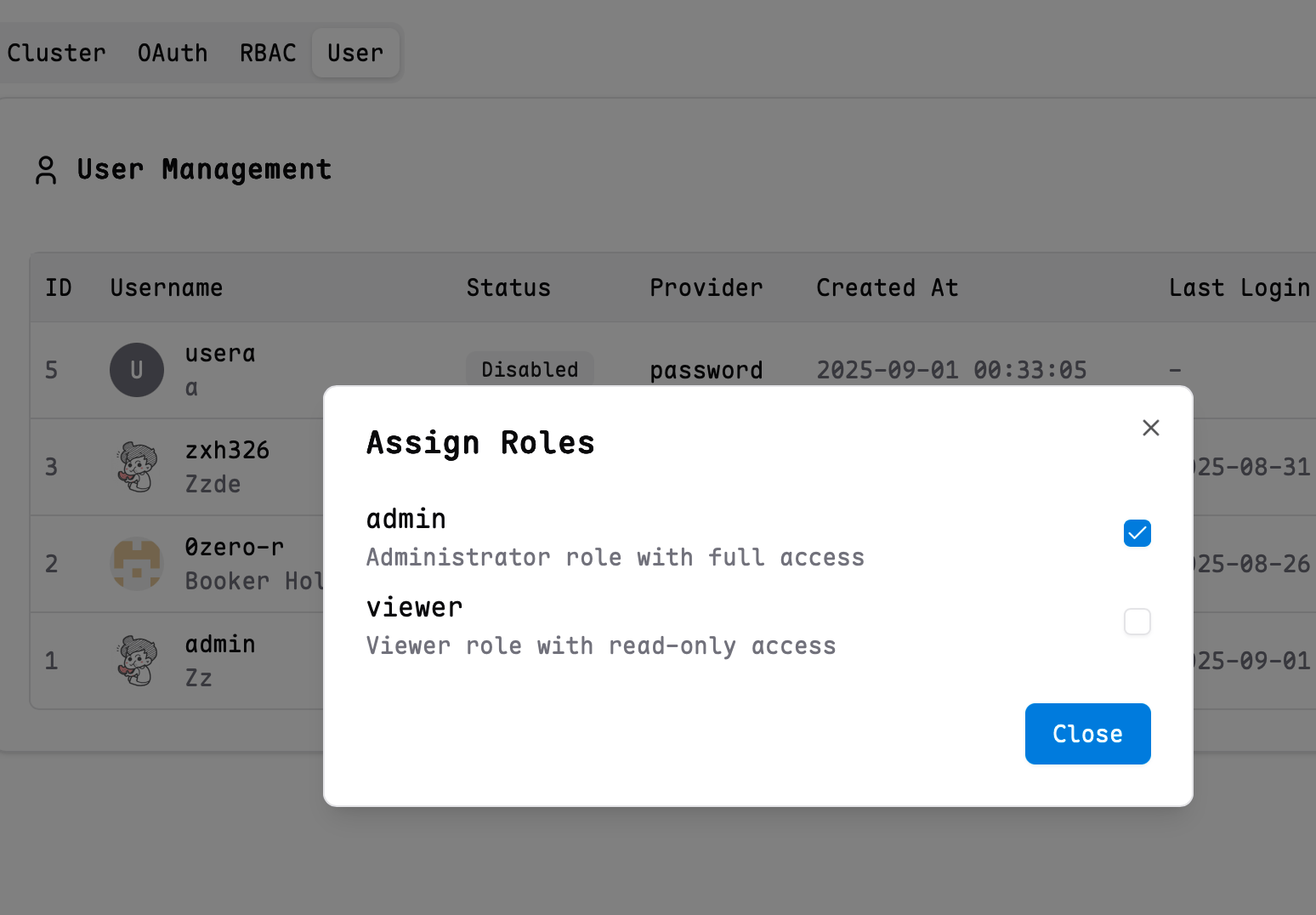

You can assign roles to specified users to give them corresponding permissions.

Example Scenarios

Scenario 1: Testing Environment

Can access resources in all test, beta namespaces, but prohibits updates and deletions.

Configuration example:

clusters: *
resources: *
namespaces: test, beta
verbs: !delete, !update, *

Scenario 2: Cluster Administrator

Assign full operation permissions to the test-cluster cluster administrator.

Configuration example:

clusters: test-cluster
resources: *
namespaces: *
verbs: *

Scenario 3: Setting Default Roles for All OAuth Users

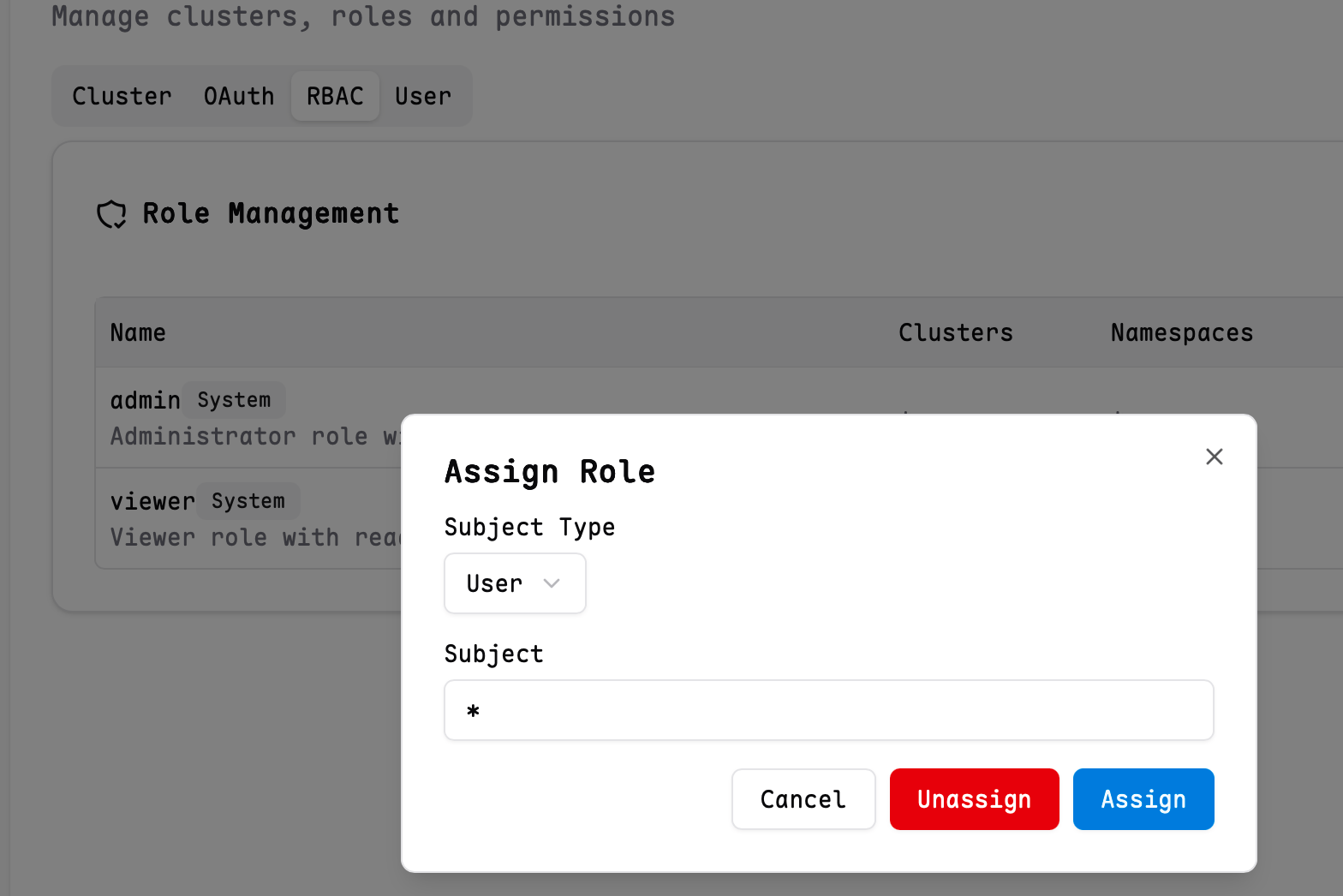

When your OAuth provider is trustworthy, such as a company's internal OA system. You can select a role and set the username to * to assign that role. See the example:

Best Practices

1. Principle of Least Privilege: Only assign necessary permissions to roles
2. Prioritize Namespace Roles: Try to restrict access to specific namespaces
3. Avoid Wildcard Users: In production environments, explicitly specify users and avoid using "*"
4. Regular Auditing: Regularly check and optimize role mappings
5. Test Access: Verify permission effects promptly after changes
